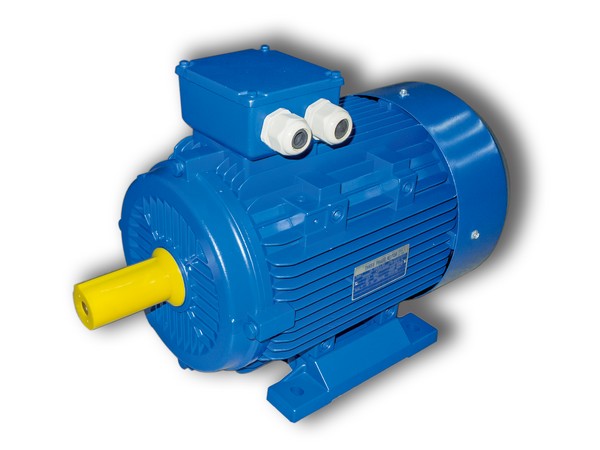

IE3 high efficiency motor is new designed for European market, completely according to the IEC standard. This series motor has outstanding performance of high efficiency, energy saving, low noise and reliable operation, etc. With the unique configuration design, it is more close to the style of international market.
Features:
Efficiency level: IE3
Frame size: 80~355M
Power: 0.75KW~315KW
Speed: 3000/1500/1000RPM
Voltage: 380/400/415/440V
Frequency: 50HZ/60HZ
Connection: Y Star for ¨Q3KW
delta-connection for ¨R4KW
Protection class: IP55
Insulation class: F
Continuous duty: S1
Cooling method: IC411
Ambient temperature: -15~+40¡æ
Altitude above sea level: <1000M
CE/CCC approval |
